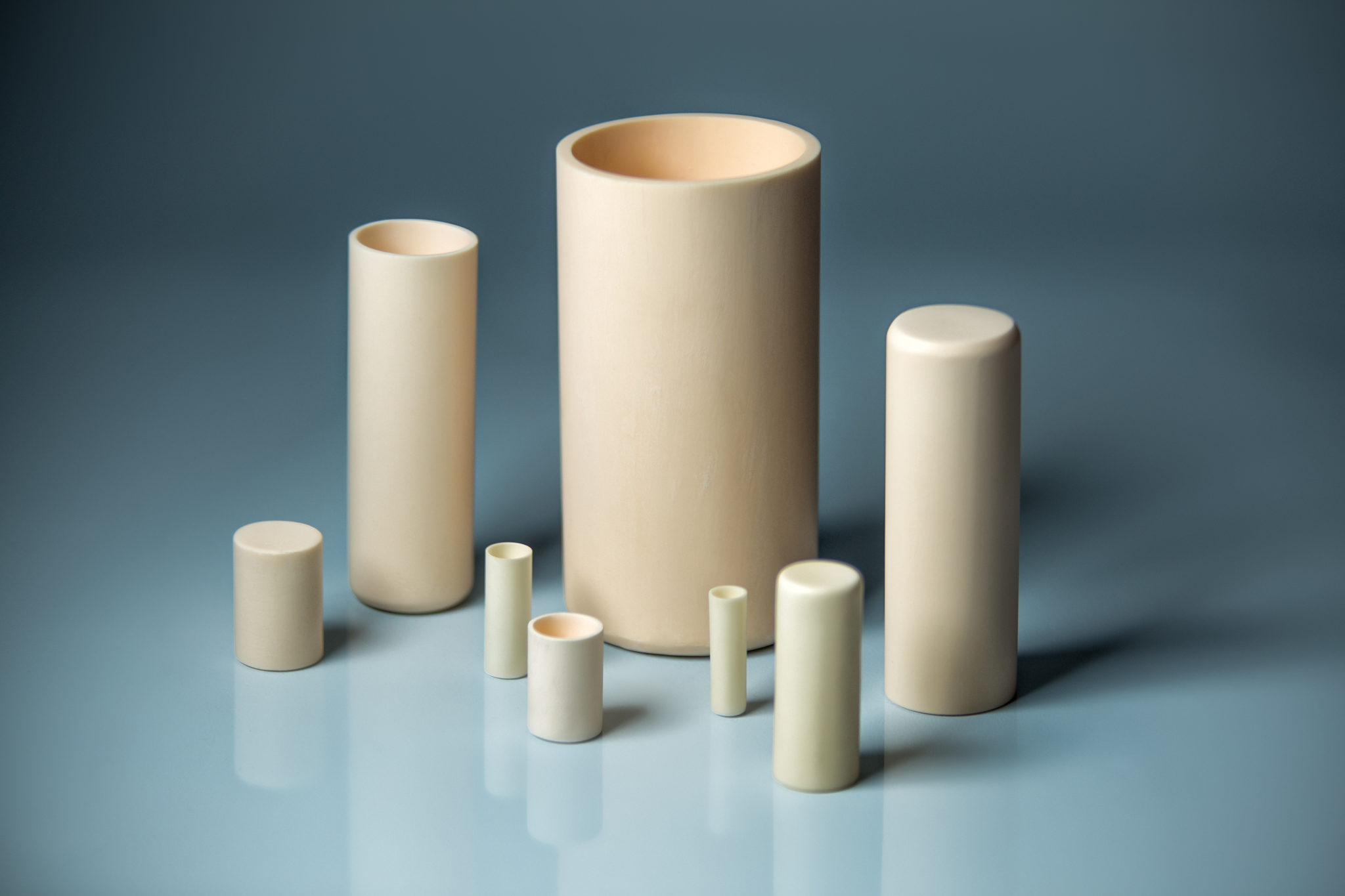

Alumina Cylindrical Crucible

Alumina Cylindrical Cruicible
Item # CYC CAPACITY (ML) DIAMETER (mm) HEIGHT (mm)
CYC002 2 13 25
CYC005-1 5 18 26
CYC005-2 5 19 26
CYC006 6 24 19
CYC010-1 10 22 33
CYC010-2 10 25 25
CYC020 20 28 44
CYC025 25 34 38
CYC040 40 25 100
CYC050-1 50 35 64
CYC050-2 50 40 42
CYC060 60 25 152
CYC100-1 100 39 91
CYC100-2 100 50 64
CYC150 150 55 78
CYC170 170 40 165
CYC180 180 54 191
CYC250-1 250 59 104
CYC250-2 250 60 100
CYC500-1 500 69 148
CYC500-2 500 75 150
CYC750-1 750 83 160
CYC750-2 750 90 150
CYC1000-1 1000 93 167
CYC1000-2 1000 120 120
CYC1500-1 1500 105 194
CYC1500-2 1500 120 160
CYC2000 2000 140 155
CYC2400 2400 127 228
CYC2500 2500 150 165
CYC3000 3000 150 200
CYC4750 4750 178 228
Item # CYC CAPACITY (ML) DIAMETER (mm) HEIGHT (mm)
WordPress Tables Plugin

What Industries Use Alumina Cylindrical Crucibles?

Answer: Alumina cylindrical crucibles manufactured by LSP Industrial Ceramics are utilized in several industries due to their high melting point, chemical inertness, and thermal stability.

Here are some of the key industries where these crucibles find application:

  • Metallurgy: They are used for melting and casting metals, particularly those with high melting points or those that require an inert environment to avoid oxidation or contamination.
  • Ceramics: In the ceramics industry, these crucibles are employed for sintering processes, where materials are heated to form dense ceramics without melting. They’re also used for the preparation and analysis of ceramic materials.
  • Chemistry: Laboratories use alumina crucibles for chemical analysis, calcination, and other high-temperature reactions where purity and resistance to chemical attack are crucial.
  • Materials Science: For research and development, especially in material synthesis and testing at high temperatures, where the inertness and durability of alumina are beneficial.
  • Semiconductor Industry: Alumina crucibles are used in processes like chemical vapor deposition (CVD) and for handling materials used in semiconductor manufacturing that require high purity and temperature resistance.
  • Glass Manufacturing: They are used for glass melting, especially for specialty glasses or when testing new glass compositions where contamination must be avoided.
  • Energy and Environmental Analysis: In applications like thermogravimetric analysis (TGA) or when analyzing materials at high temperatures for energy storage or environmental testing.

These crucibles made by LSP are valued for their ability to withstand temperatures up to 1800°C, their resistance to chemical corrosion, and their inertness, making them an integral part of processes requiring precision and high thermal performance across these industries.
